Rigging Screws

Sta-Lok Guard Rail Adjusters

Fork and Sta-Lok terminal in 316 stainless steel. Availabe in ether 1x19 or 7 strand wire types.

Part No.	Description	Wire mm	Max L mm	Min L mm	B mm	D mm	Pin mm	Price
6764	Guard Rail Terminal Fitting for 1x19 Wire	4	144	117	14.7	11.1	8	£60.54 Each
6764-7	Guard Rail Terminal Fitting for 7 Strand Wire	4	144	117	14.7	11.1	8	£52.68 Each
6765	Guard Rail Terminal Fitting for 1x19	5	144	117	14.7	11.1	8	£66.84 Each
6765-7	Guard Rail Terminal Fitting for & Strand Wire	5	144	117	14.7	11.1	8	£58.14 Each

Sta-Lok Guard Rail Adjusters

Fork and fork in 316 stainless steel.

Part No.	Description	Wire mm	Max L mm	Min L mm	B mm	D mm	Pin mm	Price £	More Details
6784	Guard Rail Fitting Fork & Fork	4-5	160	125	14.7	11.1	8	£42.96 Each

Closed Body Fork & Fork Rigging Screws

Forged in England without welds from 316 stainless steel. Manufactured with UNF threads.

Larger sizes are available up to 26mm wire size (1 3/8in thread).

Part No.	Description	Wire mm	Pin Dia mm	Jaw Width mm	Min Length mm	Max Length mm	Breaking LoadKN	Price
0926	1/4" UNF Rigging Screw F/F CB SS (3mm Wire)	3	6	6.3	140	205	11	£58.32 Each
0928	5/16" UNF Rigging Screw F/F CB SS (4mm Wire)	4	8	8	165	240	18	£52.38 Each
0930	3/8" UNF Rigging Screw F/F CB SS (5mm Wire)	5	9.5	10	200	300	28	£83.16 Each
0931	7/16" UNF Rigging Screw F/F CB SS (6mm Wire)	6	11	11	220	335	38	£158.40 Each
0932	1/2" UNF Rigging Screw F/F CB SS (7mm Wire)	7	12	12.7	260	395	51	£105.90 Each
0935	5/8" UNF Rigging Screw F/F CB SS (8mm Wire)	8	14	14	290	440	81	£160.02 Each
0936	5/8" UNF Rigging Screw F/F CB SS (10mm Wire)	10	16	16	305	455	81	£196.80 Each
0939	3/4" UNF Rigging Screw F/F CB SS (12mm Wire)	12	19	19	360	545	120	£504.00 Each
0942	7/8" UNF Rigging Screw F/F CB SS (14mm Wire)	14	22	22.2	450	640	190	£556.14 Each
0945	1"UNF Rigging Screw F/F CB SS (16mm Wire)	16	25.4	25.4	520	760	250	£856.86 Each
0948	1 1/8"UNF Rigging Screw F/F CB SS (19mm Wire)	19	28	28.6	585	855	310	£1,256.94 Each
0952	11/4"UNF Rigging Screw F/F CB SS (22mm Wire)	22	32	32	635	920	380	£1,700.76 Each
0955	1 3/8"UNF Rigging Screw F/F CB SS (26mm Wire)	26	35	35	715	1040	450	£2,423.94 Each

Open Body UNF Fork And Fork Rigging Screws

Forged in England without welds from 316 stainless steel with chrome plated Aluminium Bronze bodies manufactured with UNF threads.

Larger sizes are available up to 26mm wire size (1 3/8in thread).

Part No.	Description	Wire mm	Pin Dia mm	Jaw Width mm	Min Length mm	Max Length mm	Breaking Load KN	Price
8203	1/4" UNF Fork/Fork Rigging Screw	3	6	6.3	160	230	11	£34.74 Each
8204	5/16" UNF Fork/Fork Rigging Screw	4	8	8	185	260	18	£45.84 Each
8205	3/8" UNF Fork/Fork Rigging Screw	5	9.5	10	205	295	28	£66.96 Each
8206	7/16" UNF Fork/Fork Rigging Screw	6	11	11	230	330	38	£85.56 Each
8207	1/2" UNF Fork/Fork Rigging Screw	7	12	12.7	245	355	51	£243.12 Each
8208	5/8" UNF Fork/Fork Rigging Screw	8	14.3	14	295	425	81	£136.20 Each
8210	5/8" UNF Fork/Fork Rigging Screw	10	16	16	320	450	81	£169.50 Each
8212	3/4 inch UNF Fork/Fork Rigging Screw	12	19	17.8	393	573	120	£311.64 Each
8214	7/8 inch UNF Fork/Fork Rigging Screw	14	22	22	450	660	190	£518.10 Each
8216	1 inch UNF Fork/Fork Rigging Screw	16	25.4	25	514	754	250	£771.48 Each
8219	1 1/8 inch UNF Fork And Fork Rigging Screws	19	28	28.2	581	581	310	£1,100.58 Each
8222	1 1/4 UNF Fork And Fork Rigging Screws	22	32	31.8	641	941	380	£1,432.92 Each
8226	1 3/8 UNF Fork And Fork Rigging Screws	26	35	34.8	692	1012	450	£2,165.22 Each

Welded Fork & Fork Rigging Screws

Made from 316 stainless steel (welded).

Part No.	Description	Wire mm	Max Length mm	Min Length mm	Pin Dia mm	Jaw mm	Breaking Load Kg	Price £
0804	M4 F/F Rigging Screw	2	110	80	5	7	-	£3.24 Each
0805	M5 F/F Rigging Screw	2.5	197	132	5	7	825	£5.00 Each
0806	M6 F/F Rigging Screw	3	217	145	6.3	7	1300	£5.20 Each
0808	M8 F/F Rigging Screw	4	249	173	8	8	2350	£9.30 Each
0810	M10 F/F Rigging Screw	5	278	193	9.5	10	3550	£15.00 Each
0812	M12 F/F Rigging Screw	6	359	250	12.7	14.5	5250	£19.50 Each
0814	M14 F/F Rigging Screw	7	400	270	12	14	5900	£29.50 Each
0816	M16 F/F Rigging Screw	8	448	316	16	17	8300	£37.80 Each
0820	M20 F/F Rigging Screw	10	545	385	115	22	9000	£69.00 Each

Eye And Eye UNF Rigging Screws

Forged in England without welds from 316 stainless steel, manufactured with UNF threads.

Larger sizes are ,available up to 26mm wire size (1 3/8 thread).

Part no.	Description	Wire mm	Eye Dia mm	Eye Width mm	Min Length mm	Max Length mm	Breaking Load KN	Price
8003	1/4 UNF Rigging Screw EYE/EYE	3	6	6	125	190	11	£28.80 Each
8004	5/16in UNF Rigging Screw EYE/EYE	4	8	7	145	220	18	£52.56 Each
8005	3/8in UNF Rigging Screw EYE/EYE	5	9.5	10	185	285	28	£45.60 Each
8006	7/16in UNF Rig Screw EYE/EYE	6	11	9.5	190	295	38	£57.60 Each
8007	1/2in UNF Rig Screw EYE/EYE	7	12	11	230	360	51	£95.40 Each
8008	5/8" UNF Rigging Screw EYE/EYE	8	14	14	260	410	81	£118.02 Each
8010	5/8in UNF Rigging Screw EYE/EYE	10	16	15	270	415	81	£150.00 Each
8012	3/4" UNF Rigging Screw EYE/EYE	12	19	18	320	490	120	£244.80 Each
8014	7/8 UNF Rigging Screw EYE/EYE	14	22	22	383	580	190	£391.20 Each
8016	1" UNF Rigging Screw EYE/EYE	16	25	24	452	691	250	£619.20 Each
8019	1 1/8 UNF Rigging Screw EYE/EYE	19	28	28	510	780	310	£1,131.60 Each
8022	1 1/4 UNF Rigging Screw EYE/EYE	22	32	32	557	841	380	£1,636.80 Each
8026	1 1/8 UNF Rigging Screw EYE/EYE	26	35	34	628	952	450	£1,935.60 Each

Fork And Eye Rigging Screws

Forged in England without welds from 316 stainless steel, manufactured with UNF threads.

Larger sizes are available up to 26mm wire size (1 3/8" thread).

Part.	Description	Wire Dia mm	P mm	T mm	Min Length mm	Max Length mm	Breaking Load KN	Price
7603	1/4in Rigging Screw Fork/Eye	3	6	6.3	130	195	11	£36.00 Each
7604	5/16" Rigging Screw Fork/Eye	4	8	8	155	230	18	£45.60 Each
7605	3/8" Rigging Screw Fork/Eye	3	6	6.3	130	195	11	£63.60 Each
7606	7/16" Rigging Screw Fork/Eye	6	11	11	205	310	38	£86.40 Each
7607	1/2" Rigging Screw Fork/Eye	7	12	12.7	245	375	51	£117.60 Each
7608	5/8" Rigging Screw Fork/Eye	8	14	14	260	410	81	£142.44 Each
7610	5/8" Rigging Screw Fork/Eye	10	16	16	295	440	81	£220.80 Each
7612	3/4" Rigging Screw Fork/Eye	12	19	19	345	515	120	£397.20 Each
7614	7/8 Rigging Screw Fork/Eye	14	22	22	415	610	190	£603.60 Each
7616	1 Rigging Screw Fork/Eye	16	25	25.4	485	725	250	£939.60 Each
7619	1 1/8" Rigging Screw Fork/Eye	19	28	28.6	550	820	310	£1,497.60 Each
7622	1 1/4" Rigging Screw Fork/Eye	22	32	32	595	880	380	£2,084.40 Each
7626	1 3/8" Rigging Screw Fork/Eye	26	35	35	675	1000	450	£2,763.60 Each

Stud And Fork Rigging Screws

Forged in England without welds from 316 stainless steel, manufactured with UNF threads.

Larger sizes are ,available up to 26mm wire size (1 3/8in thread).

Part No.	Description	Wire mm	P mm	T mm	Min Length mm	Max Length mm	Breaking Load KN	Price £
7803	1/4" UNF Rigging Screw Stud-Fork	3	6	6.3	135	200	11	£36.00 Each
7804	5/16" UNF Rigging Screw Stud-Fork	4	8	8	155	230	18	£45.60 Each
7804A	3/8" UNF Rigging Screw Stud-Fork	4	9.5	10	184	284	28	£63.60 Each
7804D	1/4" UNF Rigging Screw Stud-Fork	4	6.3	6.3	126	196	11	£37.20 Each
7805	3/8" UNF Rigging Screw Stud-Fork	5	9.5	10	185	285	28	£63.60 Each
7805A	7/16" UNF Rigging Screw Stud-Fork	5	11.1	11	200	308	38	£55.20 Each
7805D	5/16" UNF Rigging Screw Stud-Fork	6	9.5	10	187	387	28	£48.00 Each
7806	7/16in UNF Rigging Screw Stud-Fork	6	11	11	205	305	38	£87.60 Each
7806A	1/2" UNF Rigging Screw Stud-Fork	6	12.7	12.7	236	368	51	£75.60 Each
7806D	3/8" UNF Rigging Screw Stud-Fork	6	9.5	10	187	387	28	£68.40 Each
7807	1/2" UNF Rigging Screw Stud-Fork	7	12	12.7	240	370	51	£123.60 Each
7807A	1/2 UNF Rigging Screw Stud-Fork	8	12.7	12.7	239	371	51	£128.40 Each
7808	5/8in UNF Rigging Screw Stud-Fork	8	14	14	265	415	81	£128.40 Each
7808A	5/8" UNF Rigging Screw Stud-Fork	8	16	16	310	466	81	£219.60 Each
7810	5/8" UNF Rigging Screw Stud-Fork	10	16	16	280	425	81	£225.60 Each
7810A	3/4" UNF Rigging Screw Stud-Fork	10	19	19	359.5	530.5	120	£393.60 Each
7812	3/4" UNF Rigging Screw Stud-Fork	12	19	19	330	500	120	£418.80 Each
7814	7/8" UNF Rigging Screw Stud-Fork	14	22.2	22.2	403	600	190	£618.00 Each
7816	1" UNF Rigging Screw Stud-Fork	16	25.4	25.4	472	711	250	£964.80 Each
7819	1 1/8" UNF Rigging Screw Stud-Fork	19	28.6	28.6	531	801	310	£1,483.20 Each
7822	1 1/4" UNF Rigging Screw Stud-Fork	22	32	32	575	859	380	£2,005.20 Each
7826	1 3/8" UNF Rigging Screw Stud-Fork	26	35	35	655	979	450	£2,786.40 Each

Stud And Fork Rigging Screws

Made in Europe from type 316 Stainless Steel.

Part No.	Description	Wire mm	Max Length mm	Min Length mm	Pin Dia mm	Jaw Width mm	Price £
11200255	M5 Fork and Stud Rigg Screw	2.5	216	152	5	8	£3.96 Each
11200306	M6 Fork and Stud Rigging Screw	3	243	171	5	8	£7.86 Each
11200406	M6 Fork and Stud Rigg Screw	4	243	171	6	7	£8.40 Each
11200408	M8 Fork and Stud Rigg Screw	4	275	199	8	10	£9.72 Each
11200508	M8 Fork and Stud Rigging Screw	5	290	215	8	11	£11.88 Each
11200510	M10 Fork and Stud Rigging Screw	5	310	225	9.5	10.5	£14.10 Each
11200610	M10 Fork and Stud Rigging Screw	6	-	-	-	-	£18.96 Each
11200612	M12 Fork and Stud Rigging Screw	6	397	288	12.7	14.5	£17.58 Each
11200714	M14 Fork and Stud Rigg Screw	7	470	315	12	14	£34.70 Each
11200812	M12 Fork and Stud Rigging Screw	6	-	-	-	-	£31.80 Each
11200816	M16 Fork and Stud Rigging Screw	8	502	370	16	17	£44.94 Each
11201016	M16 Fork and Stud Rigging Screw	10	-	-	-	-	£56.22 Each
11201020	M20 Fork and Stud Rigging Screw	10	600	410	16	24	£72.00 Each
11201220	M20 Fork and Stud Rigging Screw	12	610	440	19	23	£94.98 Each

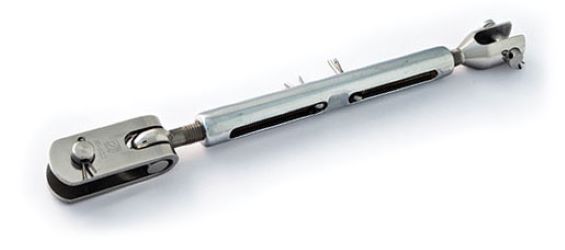

Fork And Toggle Rigging Screws

Forged in England without welds from 316 stainless steel, manufactured wuth UNF threads.

Part No.	Description	Wire mm	Pin mm	Jaw Width Fork mm	Jaw Width Toggle mm	Min Length mm	Max Length mm	Breaking Load KN	Price £
7703	1/4" Rigging Screw Fork/Toggle	3	6	6.3	7.7	156	226	11	£44.40 Each
7704	5/16" Rigging Screw Fork/Toggle	4	8	8	9	184	262	18	£56.40 Each
7705	3/8" Rigging Screw Fork/Toggle	5	9.5	10	10.3	220	320	28	£75.60 Each
7706	7/16" Rigging Screw Fork/Toggle	6	11	11	14	248	356	38	£105.60 Each
7707	1/2" Rigging Screw Fork/Toggle	7	12	12.7	14.2	285	417	51	£141.60 Each
7708	5/8" Rigging Screw Fork/Toggle	8	14	14	17.5	372	528	81	£225.12 Each
7710	5/8" Rigging Screw Fork/Toggle	10	16	16	17.5	382	538	81	£262.80 Each
7712	3/4" Rigging Screw Fork/Toggle	12	19	19	22	451	623	120	£463.20 Each
7714	7/8" Rigging Screw Fork/Toggle	14	22	22.2	24	504	701	190	£762.00 Each
7716	1 inch Rigging Screw Fork/Toggle	16	25.4	25.4	28	586	825	250	£1,160.40 Each
7719	1 1/8 Rigging Screw Fork/Toggle	19	28	28.6	32	666	937	310	£1,863.60 Each
7722	1/14" Rigging Screw Fork/Toggle	22	32	32	36	720	1004	380	£2,430.00 Each
7726	1 3/8" Rigging Screw Fork/Toggle	26	35	35	38	823	1148	450	£3,297.60 Each

Sta-Lok Guard Rail Adjusters

Fork and Sta-Lok terminal in 316 stainless steel. Availabe in ether 1x19 or 7 strand wire types.

Part No.	Description	Wire mm	Max L mm	Min L mm	B mm	D mm	Pin mm	Price
6764	Guard Rail Terminal Fitting for 1x19 Wire	4	144	117	14.7	11.1	8	£60.54 Each
6764-7	Guard Rail Terminal Fitting for 7 Strand Wire	4	144	117	14.7	11.1	8	£52.68 Each
6765	Guard Rail Terminal Fitting for 1x19	5	144	117	14.7	11.1	8	£66.84 Each
6765-7	Guard Rail Terminal Fitting for & Strand Wire	5	144	117	14.7	11.1	8	£58.14 Each
