Hand Rails, Grab Rails and Davits

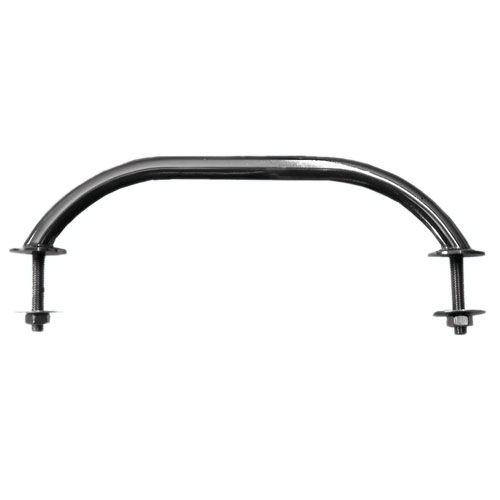

Hand and Grab Rails - Stud Fixing

Stainless steel handrails are strong and have outstanding corrosion resistance. So if you need to fit out or replace your rails, then these are quality made from top grade 316 marine grade polished stainless steel. Also used as steps.
M8 stud fixing, comes supplied with nut and penny washer at each end. Height 47mm. 36in rails have 1 centre support. 48 rails have 2 centre supports. Made from 316 polished 3/4" (19mm) stainless steel tube.

Part No.	Product Description	A/mm	A/ins	Hole Size/mm	Our Price
9523	24" Grab Rail (M8 Stud Fixing)	610	24	8	£38.94 Each
9524	36" Grab Rail (M8 Stud Fixing)	915	36	8	£62.64 Each
9525	48" Grab Rail (M8 Stud Fixing)	1220	48	8	£71.16 Each

Hand and Grab Rails

Stainless steel handrails are strong and have outstanding corrosion resistance. So if you need to fit out or replace your rails, then these are quality made from top grade 316 marine grade polished stainless steel. Also used as steps.
1.75in diameter disc fixing with two fixing holes at each end. Height 47mm. To suit 5mm bolts or No 10 self tapping screws. 36in rails have 1 centre support. 48in rails have 2 centre supports. Made from 316 polished 3/4" (19mm) stainless steel tube.

Part No.	Product Description	A/mm	A/Inches	Screw Size	Our Price
9530	9" Grab Rail (Disc Fixing)	229	9	5mm or No.10	£23.04 Each
9531	12" Grab Rail (Disc Fixing)	305	12	5mm or No.10	£28.74 Each
9533	24" Grab Rail (Disc Fixing)	610	24	5mm or No.10	£38.94 Each
9534	36" Grab Rail (Disc Fixing)	915	36	5mm or No.10	£62.64 Each
9535	48" Grab Rail (Disc Fixing)	1220	48	5mm or No.10	£71.16 Each

Stanchions

316 stainless steel tapered stanchions. Also available anodised.

Part No.	Product Description	Height/mm	Dia/mm	B/ins	Our Price
9491	Stanchion 18 x 1" Dia	450	25	18	£58.32 Each
9492	Stanchion 24 x 1" Dia	610	25	24	£33.12 Each
9493	Stanchion 24 x 1 1/4" Dia	610	32	24	£116.40 Each

Stanchion Bases

Made from 316 stainless steel

Part No.	Product Description	Inside Dia/mm	Type	Dims/mm	Fixing Holes	Our Price
8633	Stanchion Base Angled 5°	25.4	Angled 5 Deg	75 x 90 x 90	3 x 6mm	£27.96 Each
8633HD	Stanchion Base Angled 5° (Heavy Duty)	25.4	Angled 5 Deg	85 x 92 x 92	3 x 6mm	£31.20 Each
9481	Stanchion Base Standard	25.4	Standard	25 x 64	4 x 5mm	£45.48 Each
9482	Stanchion Base Heavy Duty	25.4	Heavy Duty	60 x 80	4 x 5mm	£54.18 Each
9483	Toe Rail Stanchion Base	25.4	Toe Rail	N/A	2 x 8mm	£70.92 Each
9484	Stanchion Base 25mm with Eye	25.4	With Eye	74 x 86	3 x 6mm	£27.60 Each

Flag Poles

Made from 316 stainless steel.

Part No.	Product Description	B/ins	Dia/ins	Our Price
9469	Flag Pole 15" x 3/4" Dia	15	3/4"	£29.46 Each
9470	Flag Pole 18" x 3/4" Dia	18	3/4"	£29.46 Each
9473	Flag Pole 18" x 7/8" Dia	18	7/8"	£35.34 Each
9474	Flag Pole 24" x 7/8" Dia	24	7/8"	£36.78 Each
9480	Flag Pole 24" x 1"	24	1"	£36.78 Each

Flag Poles Sockets

All sockets are made from 316 stainless steel.

Part No.	Product Description	Inside Dia/ins	Fixing/ins	Type	Our Price
9472	Raked Ensign Socket 3/4" I/D	3/4"	2 hole	Raked	£15.30 Each
9475	Raked Ensign Socket 7/8" I/D	7/8"	2 hole	Raked	£15.30 Each
9475S	Straight Ensign Socket 7/8" I/D	7/8"	2 hole	Straight	£15.30 Each
9476	Raked Ensign Socket 1" I/D	1	2 hole	Raked	£17.64 Each
9476S	Straight Ensign Socket 1" I/D	1"	2 hole	Straight	£17.64 Each
9477	Straight Ensign Socket 3/4" I/D	3/4"	2 hole	Straight	£21.60 Each

Deck Mounting Davits

These attractive deck mounting davits are made from 7/8in 316 stainless steel tube with 5mm thick stainless steel base, each davit has 6 fixing holes.

Transom brackets are also available as an add-on to convert deck mounting davits into transom mounting davits 90o as standard or any other angle to order.

Part No.	Product Description	A/mm	B/mm	Fixing	Base Dims/mm	Max Load/Kg	Our Price	More Details
9545	Pair Deck Mounting Davits	848	812	6 x 10mm	100 x 223	55	£597.12 Per Pair

Hand Rail Bases

These high quality and sturdy fittings can be used to construct handrail systems and also have many other uses on the deck. Made from cast 316 stainless steel.

Part No. 8367A - A 4-hole version of the straight base is made for 25mm tube and does not fit 1" tube.

Part No.	Description	Size mm	Fixing Holes	Price £
8337	Straight Base Fitting	22	4 x 5mm	£13.50 Each
8338	60° Base Fitting	22	4 x 5mm	£12.90 Each
8363	60° Base Fitting	25.4	4 x 6mm	£12.06 Each
8367	Straight Base Fitting	25.4	2 x 6mm	£12.42 Each
8367A	Straight Base Fitting	25	4 x 6mm	£14.16 Each

Rail Mounted Flag Pole Socket

Made from chrome plated brass. Can be mounted on rails of various diameters.

Part No.	Product Description	Inside Dia/ins	Fixing/ins	Type	Our Price	More Details
9471	Flagpole Socket, Chrome (3/4 - 1in Rail)	3/4	3/4 - 7/8 rail	straight	£18.54 Each

Hand Rail Fittings

Made from cast 316 stainless steel.

Part No.	Product Description	Tube Dia/ins	Tube Dia/mm	Type	Our Price
8369	Hand Rail End Connector	1"	25	End	£16.80 Each
8370	Hand Rail Centre Support	1"	25	Centre	£11.76 Each
8371	Hand Rail - End Fitting	7/8"	22	End	£10.80 Each
8372	Straight Hand Rail - Centre	1"	25.4	Centre	£16.26 Each

Hand and Grab Rails - Stud Fixing

Part No.	Product Description	A/mm	A/ins	Hole Size/mm	Our Price
9523	24" Grab Rail (M8 Stud Fixing)	610	24	8	£38.94 Each
9524	36" Grab Rail (M8 Stud Fixing)	915	36	8	£62.64 Each
9525	48" Grab Rail (M8 Stud Fixing)	1220	48	8	£71.16 Each
