Home   » Categories »  Marine Hardware »  Eyebolts and Eye Nuts

Eyebolts and Eye Nuts


Ring Bolts

Ring Bolts

Made from stainless steel. Metric thread.

Part No. Product Description Thread Ring i/dia
mm		 Bolt
Length/mm		 Thread
Length/mm		 Our Price More Details
SSRB06 6mm Stainless Steel Ring Bolt M6 35 75 50 £3.60 Each View more details
SSRB08 8mm Stainless Steel Ring Bolt M8 45 75 50 £5.40 Each View more details
SSRB10 10mm Stainless Steel Ring Bolt M10 49 119 79 £10.80 Each View more details
SSRB12 12mm Stainless Steel Ring Bolt M12 60 127 76 £12.42 Each View more details
Ring Bolts

Ring Bolts

Made from stainless steel. Self tapping thread.

Part No. Product Description Thread mm Bolt
Length/mm		 Ring i/dia
mm		 Our Price More Details
SSRBL03 3mm S/S Ring Bolt complete with Lag Thread M3 45 25 £2.70 Each View more details
SSRBL04 4mm S/S Ring Bolt Complete with Lag Thread M4 45 25 £4.44 Each View more details
SSRBL05 5mm S/S Ring Bolt complete with Lag Thread M5 50 30 £4.62 Each View more details
SSRBL06 6mm S/S Ring Bolt complete with Lag Thread M6 60 30 £5.76 Each View more details
SSRBL08 8mm S/S Ring Bolt complete with Lag Thread M8 80 50 £7.74 Each View more details
SSRBL10 10mm S/S Ring Bolt complete with Lag Thread M10 100 60 £13.44 Each View more details
SSRBL12 12mm S/S Ring Bolt complete with Lag Thread M12 120 75 £24.00 Each View more details
Eye Nuts

Eye Nuts

Made from 316 stainless steel. Made to DIN 582.

Part No. Product Description Thread D/mm L/mm SWL/Kg Our Price More Details
0213S M6 Eye Nut AISI 316 (Small Pat.) M6 13 6 80 £1.26 Each View more details
0214 M8 Eye Nut AISI 316 DIN 582 M8 20 7 140 £1.62 Each View more details
0215 M10 Eye Nut AISI 316 DIN 582 M10 25 9 230 £3.24 Each View more details
0216 M12 Eye Nut AISI 316 DIN 582 M12 30 11.5 340 £5.28 Each View more details
0218 M16 Eye Nut AISI 316 DIN 582 M16 35 13.2 700 £7.74 Each View more details
0219 M20 Eye Nut AISI 316 DIN 582 M20 40 16 1200 £11.52 Each View more details
0220 M24 Eye Nut AISI 316 DIN 582 M24 50 20 1800 £24.84 Each View more details
0225 M30 Eye-Nut AISI 316 DIN 582 M30 60 22 3600 £36.00 Each View more details
Lifting Eyebolts

Lifting Eyebolts

Made from 316 stainless steel. Made to DIN 580.

Part No. Product Description Thread D/mm L/mm SWL/Kg Our Price More Details
3213 M6 x 15mm Lifting Eye-Bolt DIN580 M6 13 13 80 £1.38 Each View more details
3214 M8 x 14mm Lifting Eye-Bolt DIN580 M8 20 13 140 £1.98 Each View more details
3215 M10 x 16mm Lifting Eye-Bolt DIN580 M10 25 17 230 £3.00 Each View more details
3216 M12 x 21mm Lifting Eye-Bolt DIN580 M12 30 21 340 £6.00 Each View more details
3218 M16 x 27mm Lifting Eye-Bolt DIN580 M16 35 27 700 £9.60 Each View more details
3219 M20 x 30mm Lifting Eye-Bolt DIN580 M20 40 30 1200 £13.20 Each View more details
3220 M24 x 36mm Lifting Eye-Bolt DIN580 M24 50 36 1800 £22.20 Each View more details
3225 M30 x 45mm Lifting Eye-Bolt DIN580 M30 60 45 3600 £62.34 Each View more details
Boat Ring With Shackle

Boat Ring With Shackle

Made from 316 stainless steel.

Part No. Product Description Thread I/Dia
mm		 H/mm L/mm D/mm Our Price More Details
0388 Boat Ring with Shackle 8mm (5/16in UNF) 5/16 UNF 18 110 52 6 £18.00 Each View more details
0389 Boat Ring With Shackle 10mm (3/8in UNF) 3/8 UNF 24 129 73 8 £24.00 Each View more details
Fabricated Eye Bolts

Fabricated Eye Bolts

Made from 316 stainless steel. Supplied with nuts and washers. All Fabricated Eye Bolts are fully threaded. All are available with Certificates Of Conformity.

Part No. Product Description Thread D/mm L/mm Breaking
Load/Kg		 Our Price More Details
0203 M8 x 50mm Eye Bolt M8 18 50 1400 £12.96 Each View more details
0204 M8 x 80mm Eye Bolt M8 18 80 1400 £22.80 Each View more details
0205 M10 x 65mm Eye Bolt M10 24 65 2000 £34.80 Each View more details
0206 M10 x 110mm Eye Bolt M10 24 110 2000 £31.20 Each View more details
0207 M12 x 65mm Eye Bolt M12 28 65 3000 £34.20 Each View more details
0208 M12 x 110mm Eye Bolt M12 28 110 3000 £34.56 Each View more details
Cast Eye Bolts

Cast Eye Bolts

Made from 316 stainless steel and supplied with A2 stainless nuts and washers. Not available with certificates.

Part No. Product Description Thread/mm Eye/mm Thread Length/mm Breaking
Load/Kg		 Our Price More Details
3204 M6 x 40mm Stainless Steel Eye-Bolt M6 16 40 800 £2.04 Each View more details
3205 M6 x 60mm Stainless Steel Eye-Bolt M6 16 60 800 £2.22 Each View more details
3206 M6 x 80mm Stainless Steel Eye-Bolt M6 16 80 800 £1.80 Each View more details
3207 M8 x 80mm Stainless Steel Eye Bolts M8 19 80 1400 £2.70 Each View more details
3208 M8 x 100mm Stainless Steel Eye-Bolt M8 19 100 1400 £3.00 Each View more details
3209 M8 x 200mm Stainless Steel Eye Bolt M8 19 200 1400 £3.72 Each View more details
3210 M10 x 100mm Stainless Steel Eye-Bolt M10 25 100 2000 £5.40 Each View more details
3211 M10 x 200mm Stainless Steel Eye Bolt M10 25 200 2000 £6.48 Each View more details
3212 M12 x 120mm Stainless Steel Eye-Bolt M12 29 120 3000 £8.40 Each View more details
3217 M12 x 200mm Stainless Steel Eye Bolt M12 29 200 3000 £9.60 Each View more details
3221 M16 x 150mm Stainless Steel Eye-Bolt M16 35 150 n/a £14.94 Each View more details
3222 M20 x 150mm Stainless Steel Eye-Bolt M20 39 150 - £23.40 Each View more details
3224 M24 x 150mm Stainless Steel Eye-Bolt M24 50 150 - £45.00 Each View more details
Long Eyebolts

Long Eyebolts

Made from cast 316 Stainless Steel supplied with nuts and washers. Not available with certificates.

Part No. Product Description Thread Eye/mm Length/mm Breaking
Load/Kg		 Our Price More Details
3211 M10 x 200mm Stainless Steel Eye-Bolt M10 25 200 2000 £6.48 Each View more details
3217 M12 x 200mm Stainless Steel Eye-Bolt M12 29 200 3000 £9.60 Each View more details
Wichard Eye Nuts

Wichard Eye Nuts

Made from forged 305 stainless steel.

Part No. Product Description Thread D/mm L/mm Breaking
Load/Kg		 Our Price More Details
W6333 Wichard M6 Threaded Eye Nut M6 13 7 1700 £12.48 Each View more details
W6344 Wichard M8 Threaded Eye Nut M8 17 10 3200 £19.20 Each View more details
W6355 Wichard M10 Threaded Eye Nut M10 22 12.5 4800 £30.60 Each View more details
W6366 Wichard M12 Threaded Eye Nut M12 27 15.5 7000 £45.66 Each View more details
W6367 Wichard M16 Threaded Eye Nut M14 27 29 9000 £46.38 Each View more details
W6368 Wichard M16 Threaded Eye Nut M16 27 14.5 10000 £46.38 Each View more details
Metric 304 Eye Bolts

Metric 304 Eye Bolts

Metric Eye Bolts. Made from 304 stainless steel.

Part No. Product Description Thread Thread Length mm Our Price More Details
310630 M6 x 30mm Eye-Bolt 304 S/S M6 30 £5.58 Each View more details
310660 M6 x 60mm Eye-Bolt 304 S/S M6 60 £6.72 Each View more details
310835 M8 x 35mm Eye-Bolt 304 S/S M8 35 £11.76 Each View more details
310880 M8 x 80mm Eye-Bolt 304 S/S M8 80 £7.02 Each View more details

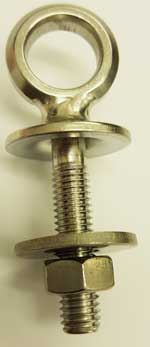

311000 M10 x 100mm Eye Bolt 304 S/S M10 100 £13.20 Each View more details
Ring Bolts

Ring Bolts

Made from stainless steel. Metric thread.

Part No. Product Description Thread Ring i/dia
mm		 Bolt
Length/mm		 Thread
Length/mm		 Our Price More Details
SSRB06 6mm Stainless Steel Ring Bolt M6 35 75 50 £3.60 Each View more details
SSRB08 8mm Stainless Steel Ring Bolt M8 45 75 50 £5.40 Each View more details
SSRB10 10mm Stainless Steel Ring Bolt M10 49 119 79 £10.80 Each View more details
SSRB12 12mm Stainless Steel Ring Bolt M12 60 127 76 £12.42 Each View more details
Ring Bolts
Ring Bolts
